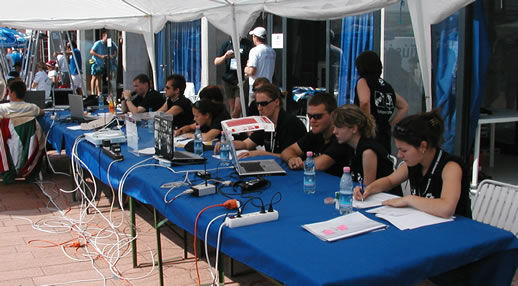

Complex equipment example from European Junior Championships
Each day we had to set up and tear down everything, hence the 'untidy' cabling!
Right to left of table..
- Two manual recorders for 1m event
- DiveRecorder operator for 1m event
- Announcer for 1m event with laptop running ScoreBoard
- Two manual recorders for 3m event
- DiveRecorder operator for 3m event
- Announcer for 3m event with laptop running ScoreBoard
- Desktop acting as database server which was located in a room behind the gazebo
- Laser printer
- Wireless judging keypads (JPads)
- One notebook running ScoreBoard to drive the electronic scoreboard
- Two laptops running DR2Referee, one for each Referee
- Laptop in a different room behind the gazebo for data entry and report generation during events
- Misc network items such as router, switch, wireless bridge (for Internet connection) and a UPS for the server and network components.
